Datasheet

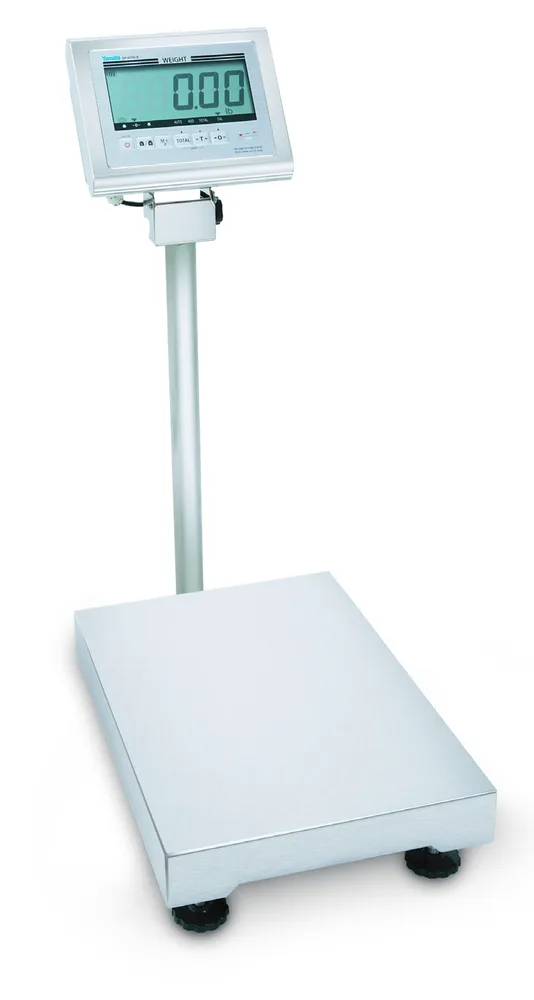

Yamato DP-6700-II
Stainless IP65 bench scale
An optional larger platform scale for Economarker and ScaleManager systems, in stainless steel, in 60 lb and 150 lb capacities.
Key features
- Optional scale on Economarker and ScaleManager systems
- Stainless steel, IP65, washdown capable on battery power only
- 13.8″ × 19.7″ platform with a column-mounted display
- Runs on 4 D batteries (about 3,000 hours continuous with alkaline) or a 110 V adapter
- RS-232 connection to the printer or PC
Specifications
| Model | 60 lb | 150 lb |
|---|---|---|
| Capacity | 60 lb × 0.02 lb | 150 lb × 0.05 lb |
| Minimum weight | 0.04 lb | 0.20 lb |
| Platform | 13.8″ × 19.7″ | |
| Overall size | 14″ W × 25″ D × 31.7″ H | |
| Weight | 41 lb | |
| Operating temperature | 14°F to 104°F | |
| Humidity | 30% to 85% | |
| Construction | Stainless steel, IP65, washdown capable on battery power only | |
| Power | 4 D batteries or 110 V adapter. Battery life about 3,000 hours continuous with alkaline. | |
| Interface | RS-232 | |
Works with
- Economarker systems (optional scale)
- ScaleManager systems (optional scale)
- Solo2 printers and ScaleManager PCs over RS-232
Specifications are subject to change without notice.
