Datasheet

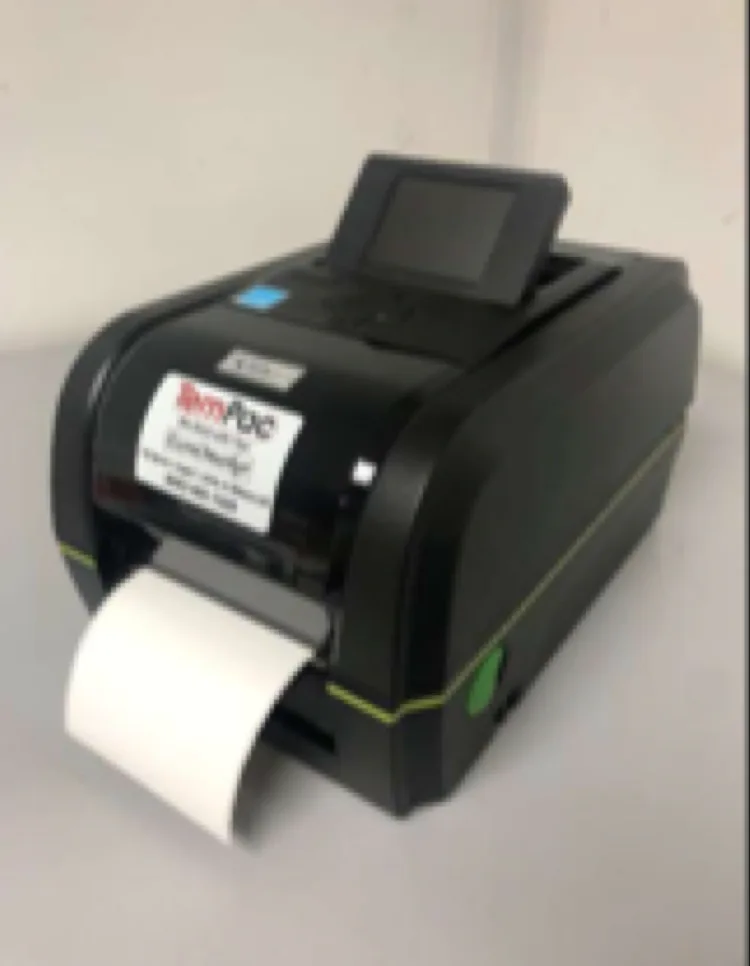

Solo2 T245 / T345
Compact stand-alone label printer
A compact desktop label printer for direct thermal and thermal transfer printing. The T245 prints at 203 dpi and the T345 at 300 dpi.
Key features
- Direct thermal and thermal transfer printing
- 3.5″ color display
- Takes 5″ OD label rolls on a 1″ core; an external holder for a full roll on a 3″ core is available
- Ribbons up to 984 ft
- Real-time clock included
- Ships with a LabelDirect software license and printer driver (Windows only)
Specifications
| Model | T245 | T345 |
|---|---|---|
| Resolution | 203 dpi | 300 dpi |
| Print method | Direct thermal and thermal transfer | |
| Max. print width | 4.25″ | 4.17″ |
| Max. ribbon width | 4.3″ | |
| Label roll | 5″ OD on a 1″ core. External holder for a full roll on a 3″ core available. | |
| Ribbon | Up to 984 ft, 1″ core, ink side in or out | |
| Display | 3.5″ color display | |
| Real-time clock | Included | |
| Operating temperature | 41°F to 104°F | |
| Humidity | 25% to 85%, non-condensing | |
| Dimensions | 8.66″ W × 7.87″ H × 13.07″ D | |
| Weight | 8.16 lb | |
| Interfaces | USB 2.0; RS-232; internal Ethernet, 10/100 Mbps; USB host (dealer option); Centronics (factory option); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module; MFi Bluetooth 5.0 (factory option) | |
| Memory | 128 MB Flash memory; 128 MB SDRAM; microSD card reader for Flash memory expansion, up to 32 GB | |
| 1D bar codes | Code 39, Code 93, Code128UCC, Code128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China Post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS | |
| 2D bar codes | TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode) | |
| Software | LabelDirect software license and printer driver (Windows only) | |
Works with
- LabelDirect software (license included)
- KP-200 Plus keyboard, a replacement for older Economarker systems (option)
- External label roll holder for a full roll on a 3″ core (option)
- TemPac 4.33″ × 984′ ribbons: black wax/resin and black resin
- TemPac 4x3DTB1 poly direct thermal labels (4″ × 3″, 1″ core)
Specifications are subject to change without notice.
